Standing Seam Cladding Systems

The simple alternative to traditional metal roof and walls.

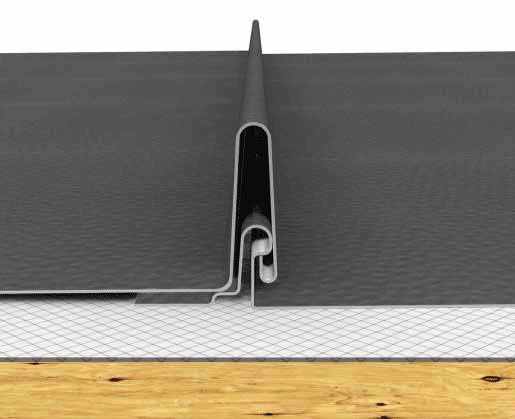

Convenient and cost effective are two terms that perfectly describe this new roofing system available from Patrick Lynch Roof Cladding. It is a quickly installed alternative to traditional roofing and is manufactured using the latest technology to facilitate a straightforward installation whilst offering the aesthetic and charm of time-honoured materials like lead or zinc. The principle is simple and effective. A flat pan sheet features simple edges known as laps that fit over and under each other, either side of the sheet. These laps sit over a stainless steel clip that is fixed to the support structure. The laps are mechanically folded over the clip to secure the roof.

• - Simple, cost-effective alternative to traditional roofing systems
• - Can be applied to roof and walls
• - Option of warm and cold systems
• - Hidden fixings for a clean, attractive finish
• - Fast construction aided by the pre-punched Euroclad RocBar
• - Factory manufactured or produced onsite using specialist mobile equipment
• - Available in straight, curves and tapered sheet options
• - RocSlab insulation is quickly laid and provides a walkable surface
• - Warm roof version is Part L compliant
• - Warm roof version provides excellent acoustic performance
• - The system can be joggle jointed should it be required



•


Standing Seam Seamlap Cladding

Click here for our Seamlap product page

Standing Seam Seamlap Cladding offers a comparable finish to the Seamlock product but instead of a folded seam the sheets click together to deliver an attractive visual finish with hidden fixings.

This product can be fitted easily by any carpenter without specialised seaming tools.

Sheets are fully supported and are available in 0.7mm steel.
Seamlap has been developed to be even more cost-effective than Seamlock, especially when steel is the material of choice.

See more on our dedicated Seamlap product webpage.

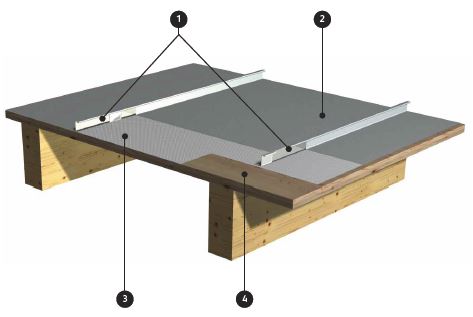

Cold Roof

The cold roof system has been specifically designed for use on traditional pitched roofs and is suitable for use with the kind of timber frame that is used in the majority of homes and many large buildings.



1. Stainless steel clips and stainless steel self-drilling fixings.
2. External sheet with 454mm cover width. Other widths are available on request.
3. Breather membrane with 150mm laps, stapled to timber deck.
4. Timber deck substrate.

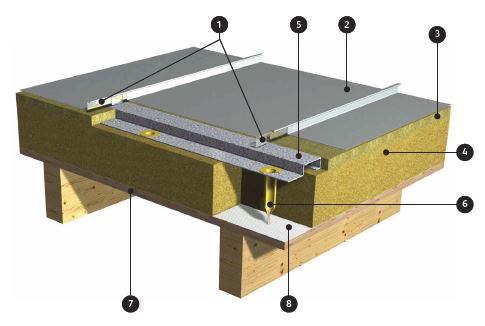

Warm Roof

The warm roof system embraces the fundamentals of modern metal roofing with inherent thermal performance provided by RocSlab insulation, whilst the outer sheet provides the look of a traditional pitched roof.

1. Stainless steel clips and stainless steel self-drilling fixings.
2. External sheet with 454mm cover width. Other widths are available on request.
3. 25mm RocSlab insulation.
4. RocSlab insulation.
5. RocBar.
6. RocTube fixing sleeves and self-tapping fixings.
7. Timber deck substrate (structural deck and suitable profiled sheet in steel or aluminium can also be used).
8. vapour barrier with 150mm sealed laps.

SIPS Roof

Our standing seam systems can be used with a Structural Insulated Panel (SIP) construction for use on traditional pitched roofs where it is fixed to the face of a SIP substrate. The use of SIPs has increased in popularity due to its intrinsic thermal performance and speed of construction. SIP constructions are often used in self-build and large scale housing developments.

1. Stainless steel clips and stainless steel self-drilling fixings.
2. External sheet with 454mm cover width. Other widths are available on request.
3. Breather membrane with 150mm laps.
4. Structural Insulated Panel (SIP).
